Description
FEATURES
- High-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears

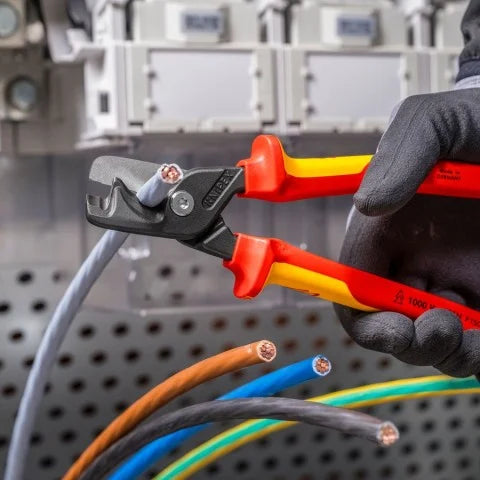

- Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG

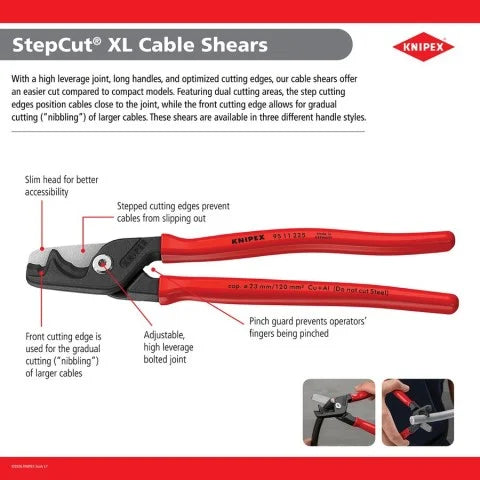

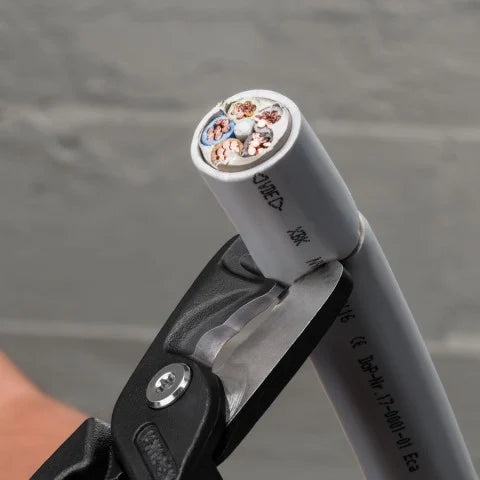

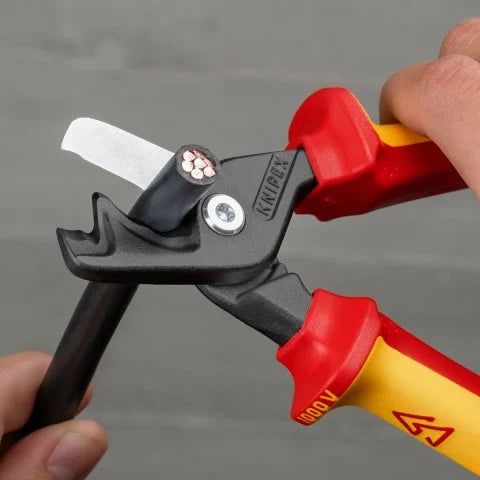

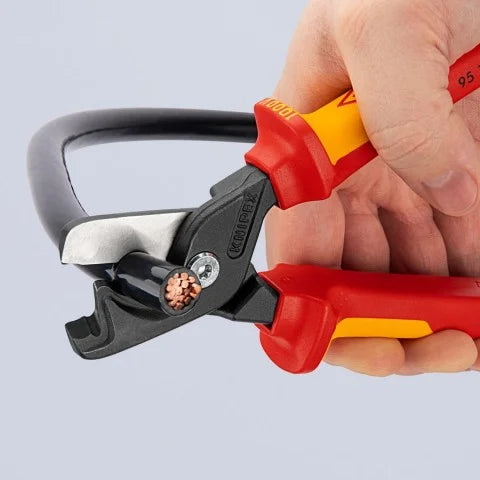

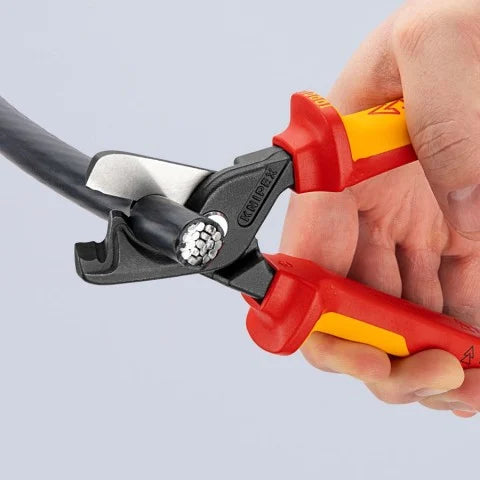

- Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting ("nibbling") of larger cables
- Easy one- or two-handed operation with minimal handle opening for large cable diameters
- Slim head for better accessibility
- Not suitable for steel-reinforced cables, e.g. ACSR
- Adjustable, high-leverage bolted joint provides precise and smooth cutting
- Pinch guard prevents operators' fingers being pinched

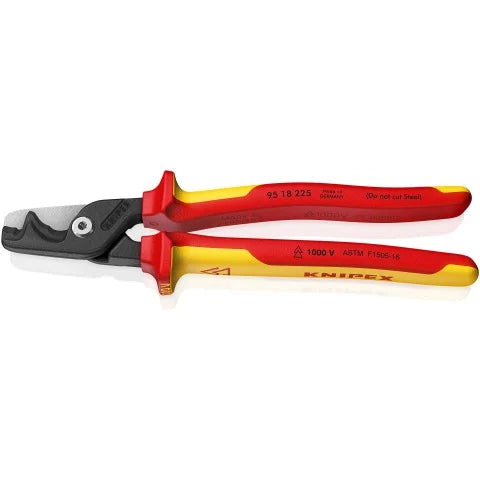

- Laser-hardened cutting edges (approx. 56 HRC)1000V multi-component grips, ASTM F1505-tested
- High-grade special tool steel; forged; oil-hardened
SPECIFICATIONS
Country of Origin: Germany
Length: 9"
Width: 2 1/2"
Height: 1 1/8"
Weight: 0.944 lbs.
1000 Volt Insulated: Yes
ESD Indicator: No
Spring Loaded: No
Material Type: High-grade special tool steel, forged, oil-hardened
Handle Type: 1000V Insulated, multi-component, ASTM
Surface Finish: Burnished
Joint Type: Bolted
Cutting Edge Shape: Shear
Jaw Length: 1 1/4"
Jaw Width: 1 1/4"
Jaw Thickness: 1/2"
Tip Thickness: 1/4"
Tip Width: 1"
Cable Cutting Capacity: 29/32" (2/0 AWG)
Wire Size: Up to 2/0 AWG (solid and stranded cables), Up to 4/0 AWG (fine stranded cables)
Color: Red/Yellow
Cable Type: Stranded Cables|Fine Stranded Cables|Solid Cable
Reach: does not contain SVHC
RoHS: not applicable
