Description

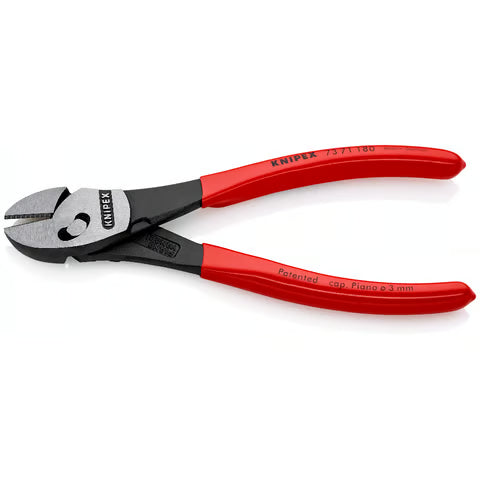

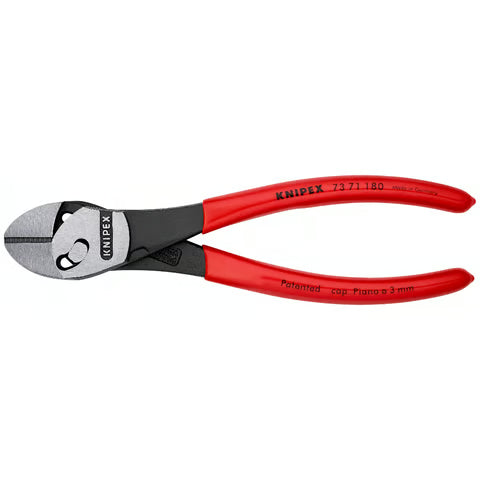

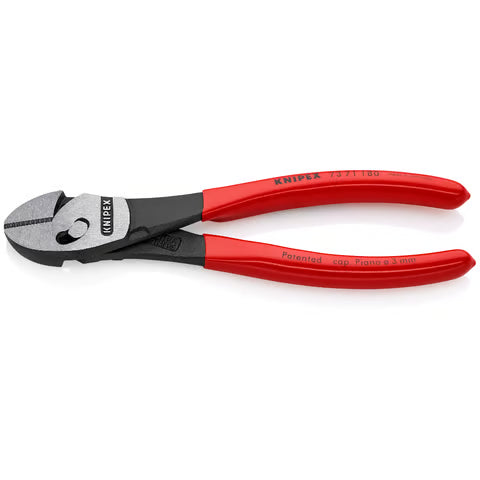

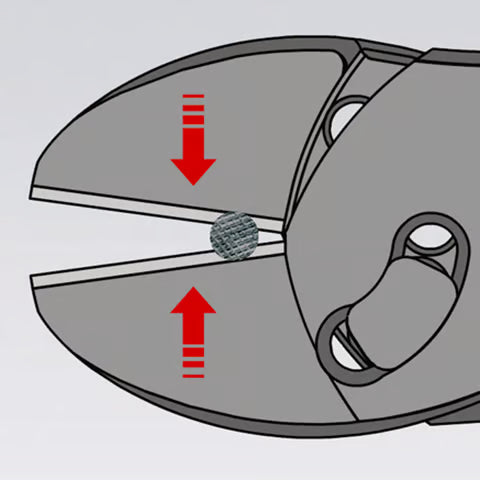

In terms of reinforcement of manual force, the Knipex 73 71 180 TwinForce high performance high leverage diagonal cutters is one of the strongest models of pliers from Knipex: manual force is reinforced up to 39 times over. Instead of a central axle as with conventional diagonal cutters, the rotating movement on the Knipex 73 71 180 TwinForce is guided by two guide bolts outside the pivot point. In the centre where the rivet (the axle) would otherwise be, the Knipex 73 71 180 TwinForce therefore has room for the material to be cut, and so lies very close to the pivot point. The very large transmission ratio in this design is gentle on hands, particularly when the high leverage diagonal cutters are used for sustained periods, e.g. during wire production.

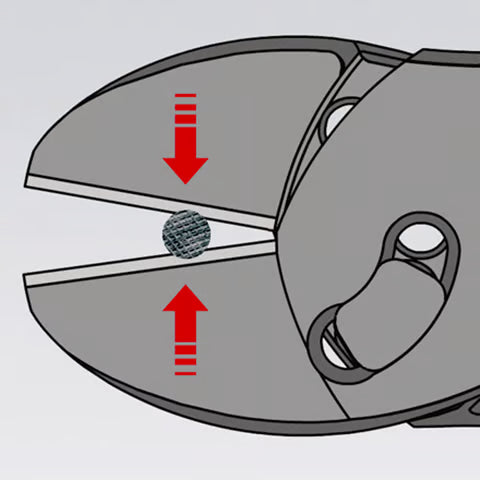

Diagonal cutters transfer the tension from the material to the hand, which then exerts pressure on the handles. When cutting through the material, this energy literally discharges abruptly. Due to the patented double bolt design of the Knipex TwinForce, this unpleasant cutting impact is substantially reduced. The ingenious joint furthermore simplifies work significantly. Users of the Knipex TwinForce need less than half the manual force compared to high leverage diagonal cutters of the same size.

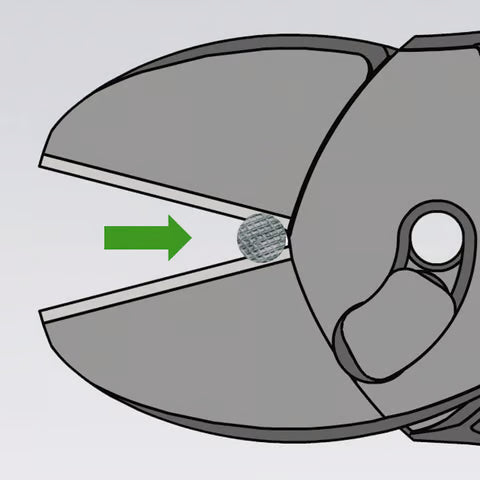

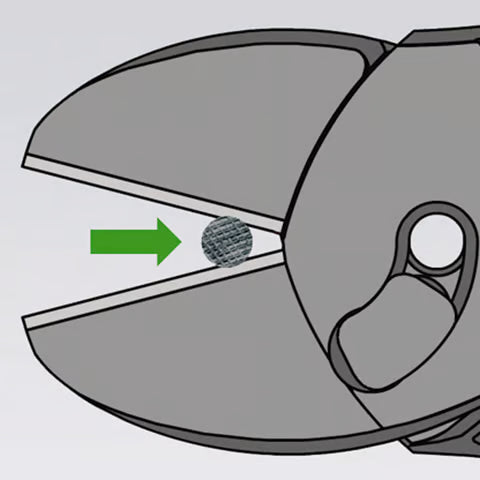

The user reapplies the Knipex 73 71 180 TwinForce when cutting particularly thick material to make full use of the reinforcement of manual force produced by the design. By notching and reapplying the tool, wire up to 4 mm thick can be cut without a problem.
FEATURES
- Ideal transmission of force due to double-hinged design

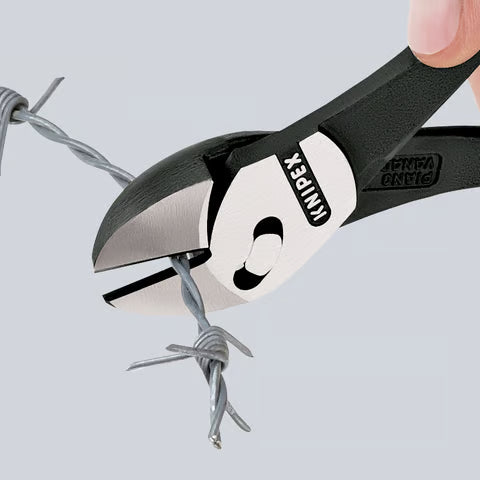

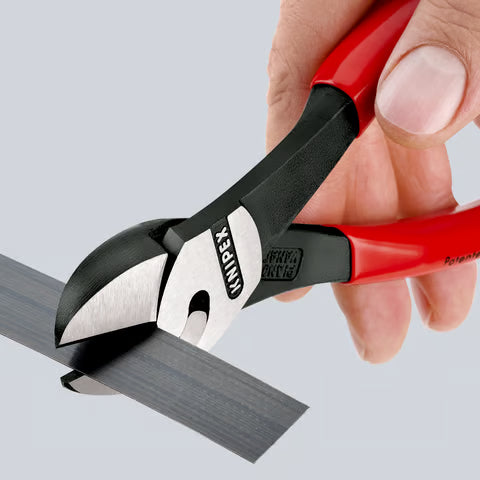

- Reliably cuts all types of wire, including steel tape
- For rough or very fine cutting
- Low cutting impact: gentle on hands. The tension on muscles and tendons is relieved
- For comfortable cutting, repetitive cutting or extremely hard cutting jobs
- High degree of stability and zero-backlash due to precisely milled forged-in axles
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
SPECIFICATIONS
