Description
If you are looking to get the most out of your time and money through more efficient production, but want nothing.
This double edged cutter is made of special FATIGUE-PROOF® steel and micrograin carbide to withstand even the heaviest of workloads.
The surface is protected with our trademark orange non-stick P.T.F.E. coating to help keep the bit from collecting resin, pitch and other residue.
Every bit is subject to strict quality tests to guarantee perfect cutting tolerance, balance and concentricity.
You can also count on exceptional swarf removal to allow cleaner and more constant cutting.
CMT bits are perfect for industrial scale production using a variety of materials such as plywood, composites and natural woods.

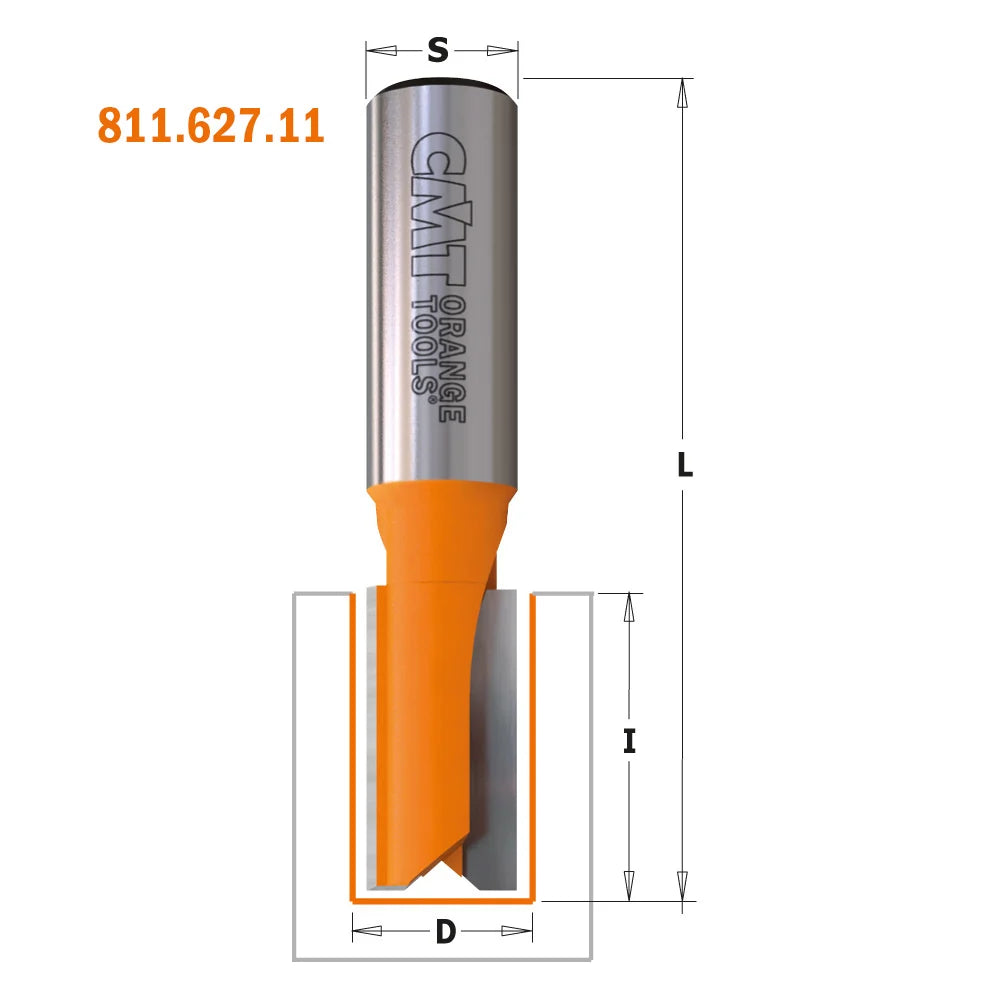

SPECIFICATIONS

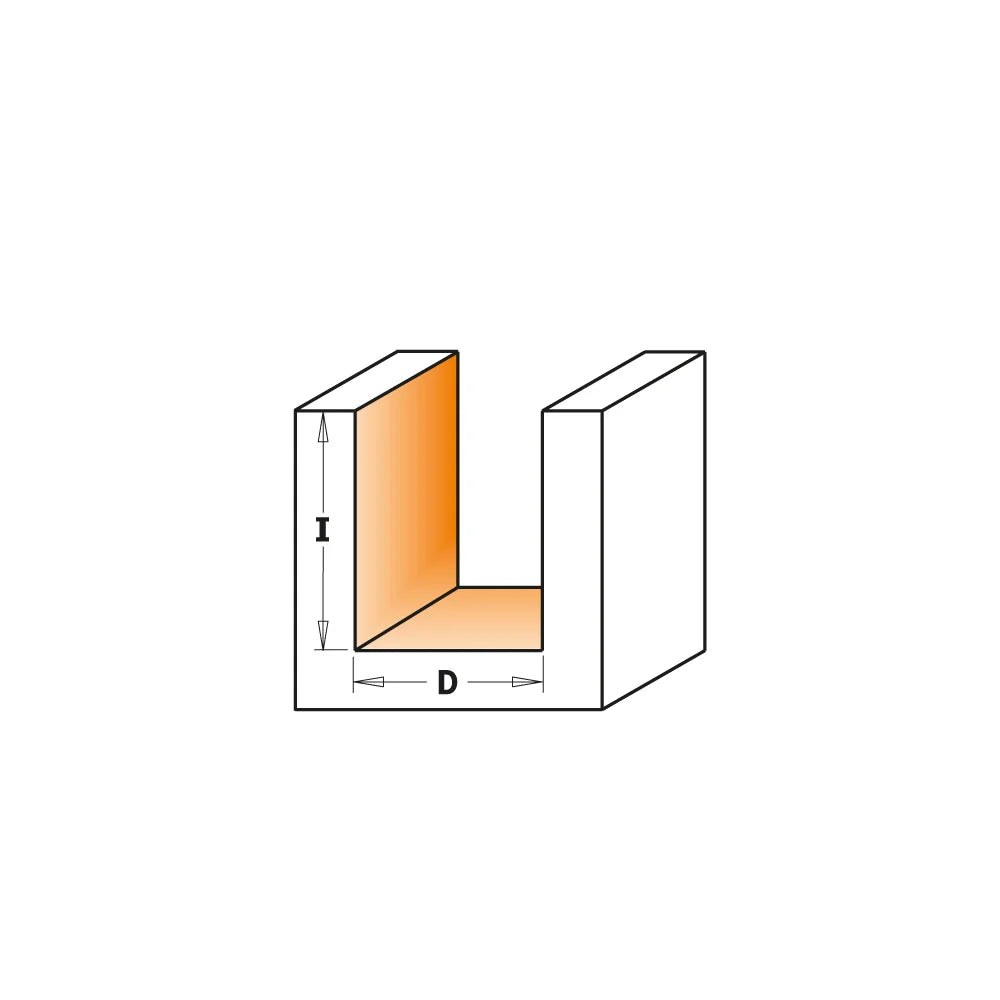

| Item Code | D | I | L | S | Z | RH-LH |
|---|---|---|---|---|---|---|
|
811.020.11
|
2mm | 5/32 | 1-3/4 | 1/4 | 1 | RH |
|
811.030.11
|
3mm | 5/16 | 1-3/4 | 1/4 | 2 | RH |
|
811.032.11
|
1/8 | 3/8 | 1-3/4 | 1/4 | 2 | RH |
|
811.040.11
|
5/32 | 3/8 | 1-3/4 | 1/4 | 2 | RH |
|
811.047.11
|
3/16 | 1/2 | 2 | 1/4 | 2 | RH |
|
811.050.11
|
5mm | 15/32 | 2 | 1/4 | 2 | RH |
|
811.060.11
|
15/64 | 5/8 | 2 | 1/4 | 2 | RH |
|
811.560.11
|
15/64 | 3/4 | 2-1/2 | 1/2 | 2 | RH |
|
811.564.11
|
1/4 | 3/4 | 2-1/2 | 1/2 | 2 | RH |
|
811.064.11
|
1/4 | 3/4 | 2 | 1/4 | 2 | RH |
|

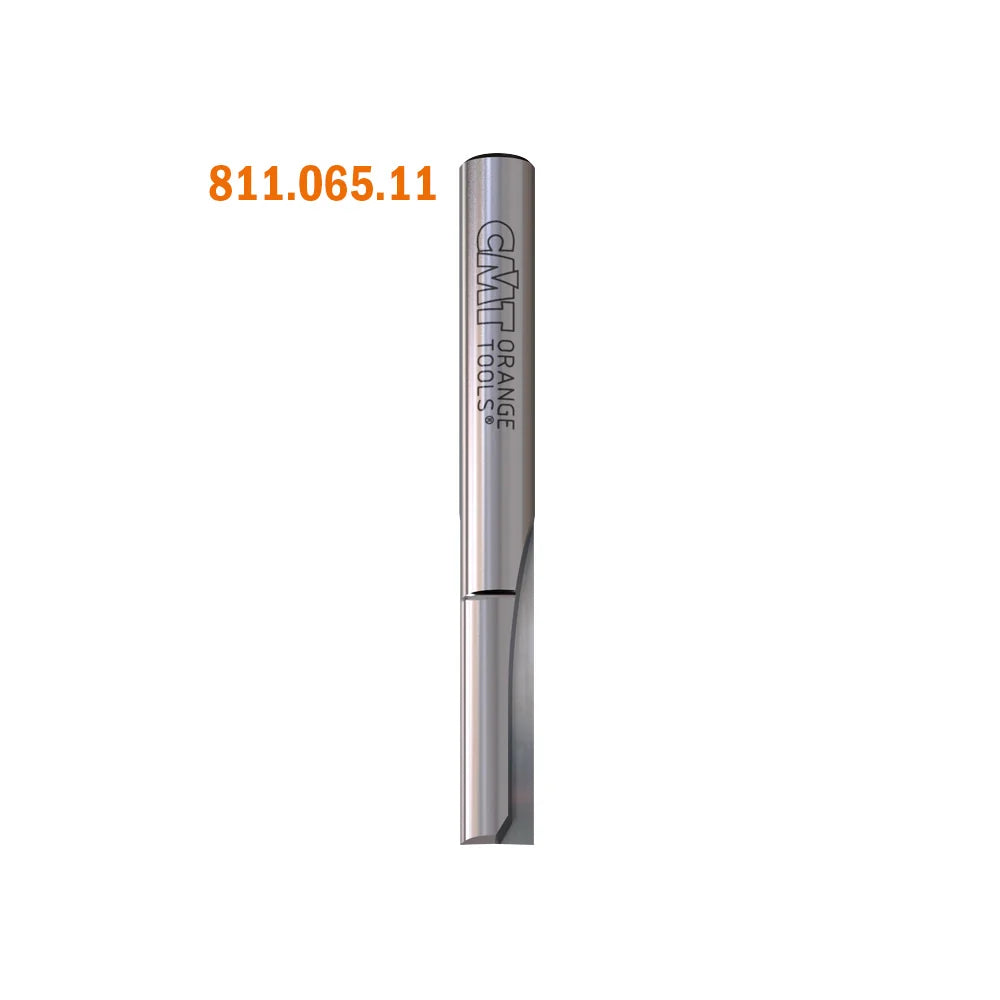

811.065.11
|
1/4 | 3/4 | 2-1/4 | 1/4 | 2 | RH |
|
811.070.11
|
7mm | 23/32 | 1-7/8 | 1/4 | 2 | RH |
|
811.080.11
|
5/16 | 3/4 | 2 | 1/4 | 2 | RH |
|
811.081.11
|
5/16 | 1 | 2-3/4 | 1/4 | 2 | RH |
|
811.581.11
|
5/16 | 1 | 2-3/4 | 1/2 | 2 | RH |
|
811.595.11
|
3/8 | 1 | 2-5/8 | 1/2 | 2 | RH |
|
811.095.11
|
3/8 | 3/4 | 2 | 1/4 | 2 | RH |
|
811.096.11
|
3/8 | 1 | 2-1/2 | 1/4 | 2 | RH |
|
811.100.11
|
10mm | 3/4 | 1-7/8 | 1/4 | 2 | RH |
|
811.600.11
|
10mm | 1 | 2-1/2 | 1/2 | 2 | RH |
|
811.620.11
|
12mm | 1 | 2-1/2 | 1/2 | 2 | RH |
|
811.120.11
|
12mm | 3/4 | 2 | 1/4 | 2 | RH |
|
811.123.11
|
31/64 | 1 | 2-1/4 | 1/4 | 2 | RH |
|
811.623.11
|
31/64 | 1 | 2-1/2 | 1/2 | 2 | RH |
|

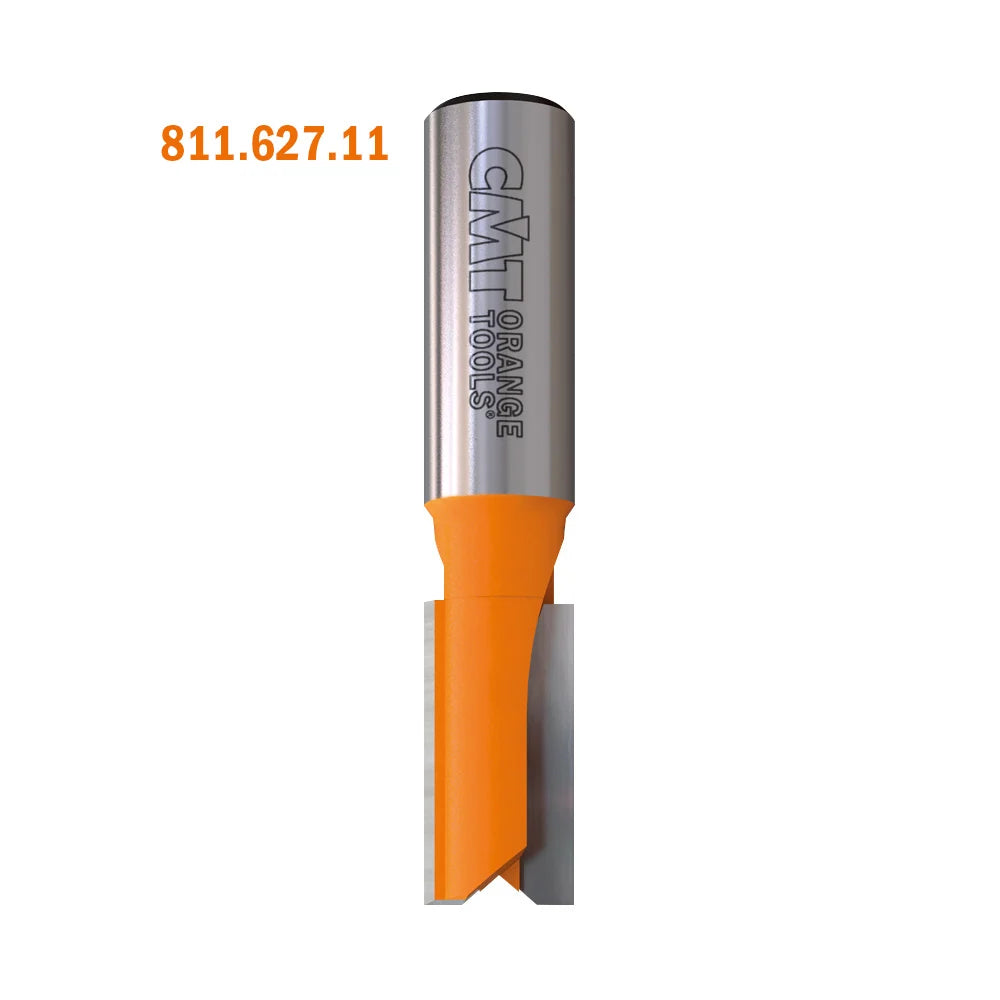

811.627.11
|
1/2 | 1 | 2-5/8 | 1/2 | 2 | RH |
|
811.628.11
|
1/2 | 1-1/4 | 3 | 1/2 | 2 | RH |
|
811.127.11
|
1/2 | 3/4 | 2-1/4 | 1/4 | 2 | RH |
|
811.140.11
|
14mm | 3/4 | 2 | 1/4 | 2 | RH |
|
811.142.11
|
9/16 | 9/16 | 2-1/4 | 1/4 | 2 | RH |
|
811.150.11
|
15mm | 3/4 | 2-1/4 | 1/4 | 2 | RH |
|
811.158.11
|
5/8 | 3/4 | 2-5/8 | 1/4 | 2 | RH |
|
811.660.11
|
5/8 | 1 | 2-1/2 | 1/2 | 2 | RH |
|
811.661.11
|
16mm | 1 | 2-1/2 | 1/2 | 2 | RH |
|
811.160.11
|
16mm | 3/4 | 2-1/4 | 1/4 | 2 | RH |
|
811.180.11
|
18mm | 3/4 | 2 | 1/4 | 2 | RH |
|
811.182.11
|
23/32 | 1 | 2-1/4 | 1/4 | 2 | RH |
|
811.682.11
|
23/32 | 1 | 2-1/2 | 1/2 | 2 | RH |
|
811.690.11
|
3/4 | 1 | 2-1/2 | 1/2 | 2 | RH |
|
811.191.11
|
3/4 | 3/4 | 2-1/4 | 1/4 | 2 | RH |
|
811.700.11
|
19.85mm | 1 | 2-5/16 | 1/2 | 2 | RH |
|
811.200.11
|
20mm | 3/4 | 2 | 1/4 | 2 | RH |
|
811.220.11
|
22mm | 3/4 | 2-1/4 | 1/4 | 2 | RH |
|
811.254.11
|
1 | 3/4 | 2 | 1/4 | 2 | RH |
|
811.754.11
|
1 | 1-1/4 | 3 | 1/2 | 2 | RH |
|
811.785.11
|
1-1/8 | 1-1/4 | 3 | 1/2 | 2 | RH |
