Description

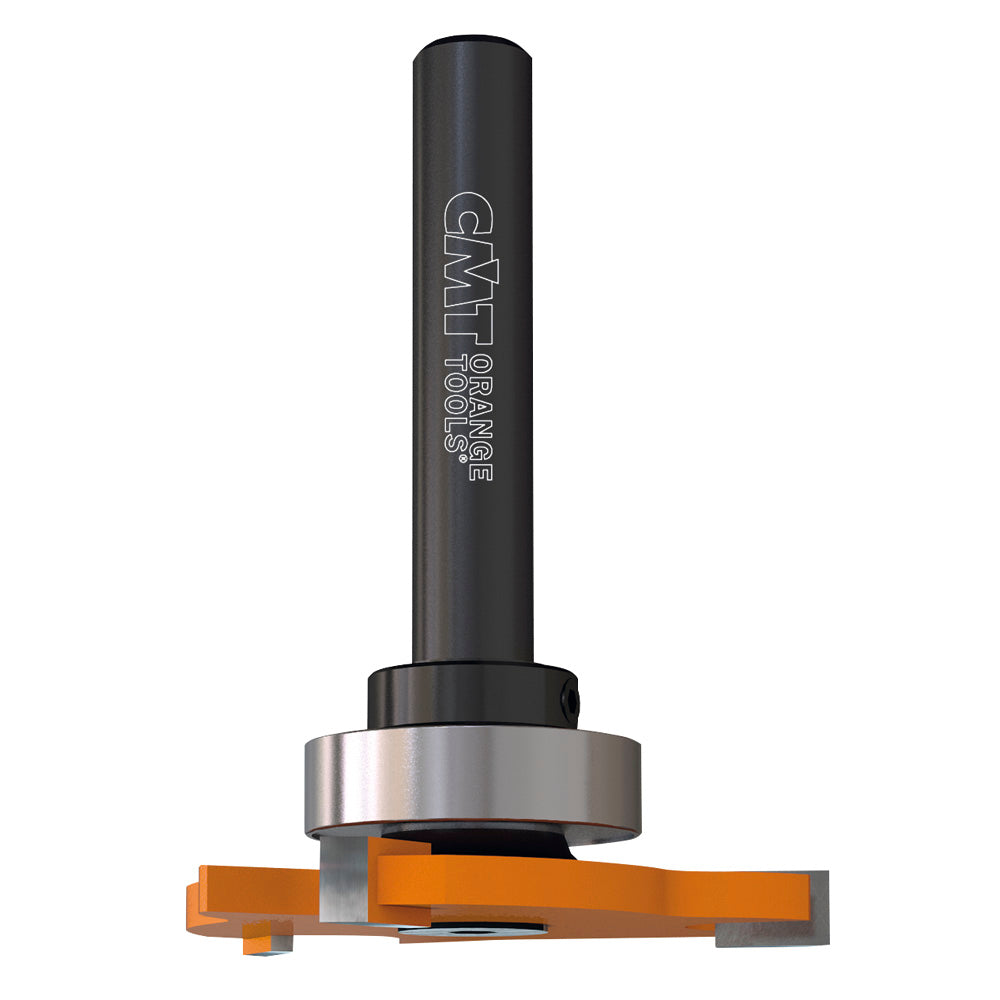

The possible uses of this bit are almost: you can rout grooves and rabbets, T or dovetail joints on wood panels. Each bit has three carbide tipped cutters and has an orange colored PTFE coating, it features anti-kickback design too. The 22mm (7/8") bearing is included for a cutting depth of 12,8mm (1/2"). The bit and the slot cutter are available also separately.
NOTE: This cutter comes with a Ø22mm bearing for
2.8mm depth cuts. By ordering different bearings
this depth can be shortened.

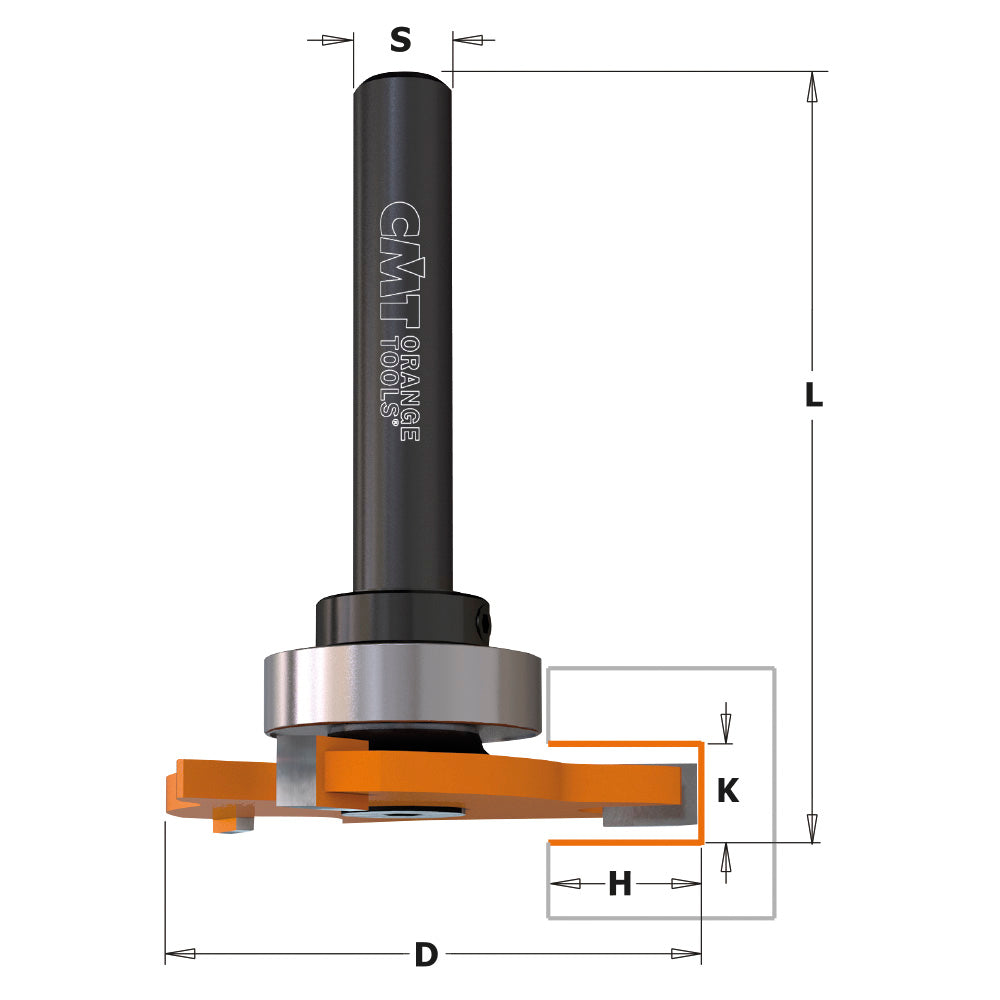

SPECIFICATIONS
| Item Code | K | P | D | H | L | S |
|---|---|---|---|---|---|---|
|
823.332.11B
|
1/8 | 0.051 | 1-7/8 | 1/2 | 2-17/64 | 1/2 |
|
823.340.11B
|
5/32 | 0.081 | 1-7/8 | 1/2 | 2-19/64 | 1/2 |
|
823.364.11B
|
1/4 | 0.175 | 1-7/8 | 1/2 | 2-25/64 | 1/2 |
